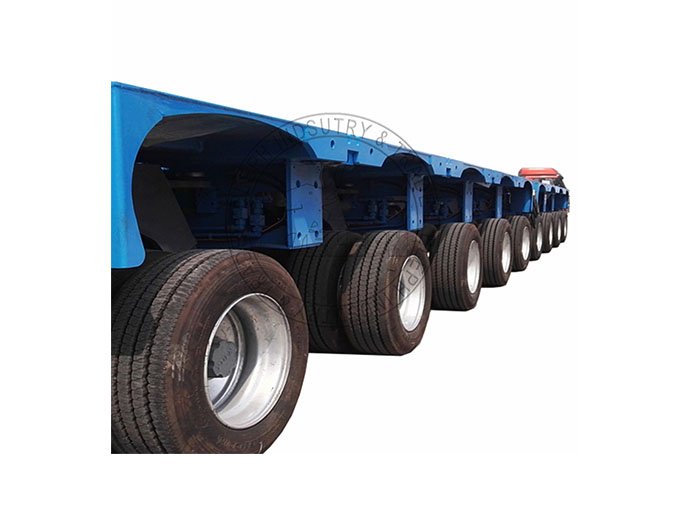

Nicolas Modular Trailer

BACK

ELEPH Manufacture Nicolas model modular trailer, capacity 34 tons/axle line, min height 770 mm, axle compensation 600 mm, width 2,990 mm , axle base 1,550 mm with high tensile structure steel, robust and durable construction with high bending moment, high concentrated load bearing capacity.

Detail

Item	Technical Parameters of Nicolas MDED model modular trailer
Capacity	34000 kg/axle line @0.5km/h
Material	HG60 high tensile steel
Dead weight	3300 kg/axle line
Width of Platform	2990 mm
Platform height	1080(+290)(-310) mm. Total suspension stroke 600 mm
Wheelbase	1550 mm
Tire specification	215/75 R17.5
Rim specification	6.00 – 17.5 (10 holes)
Approach / Departure angle	20° / 26°
Steering mechanism	Hydraulic – Mechanic all-wheel steering
Brake system	Dual pipeline control. Dual shoe brake and spring brake for all axles.
Maximum steering angle	+ / – 55° in all ride heights

· Versatile modular vehicle to configure trailer in 2, 3 and 4 files

· Up to 34 ton technical axle load

· Suspension stroke of 600 mm

· Steering angle up to 55°

· Simple, accessible steering system

· Lowest platform height on the market with 770 mm in low position

· Wide range of interchangeable platforms and accessories

· The lowest dead weight on the market
