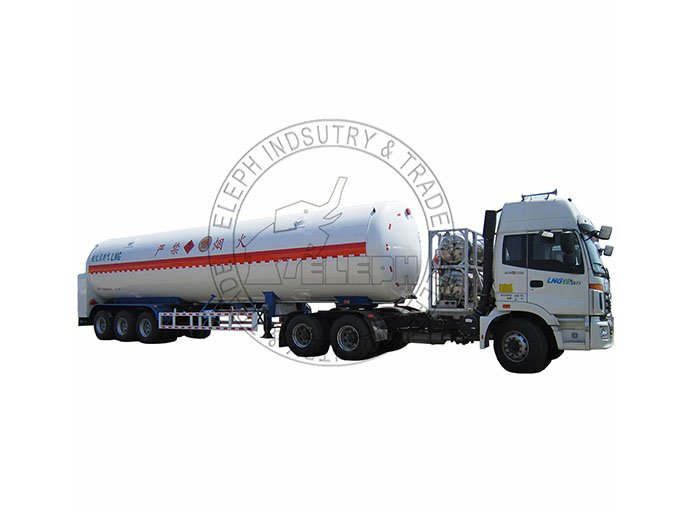

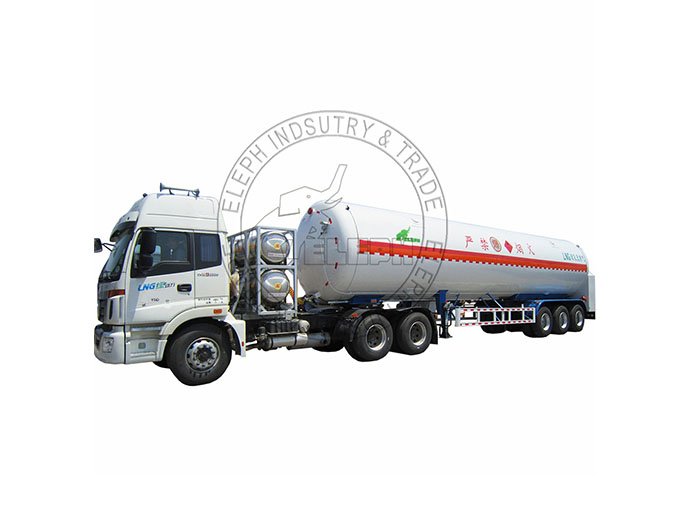

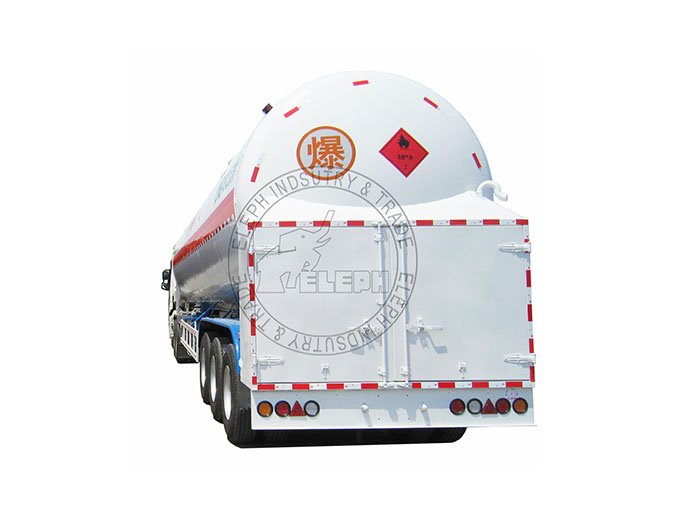

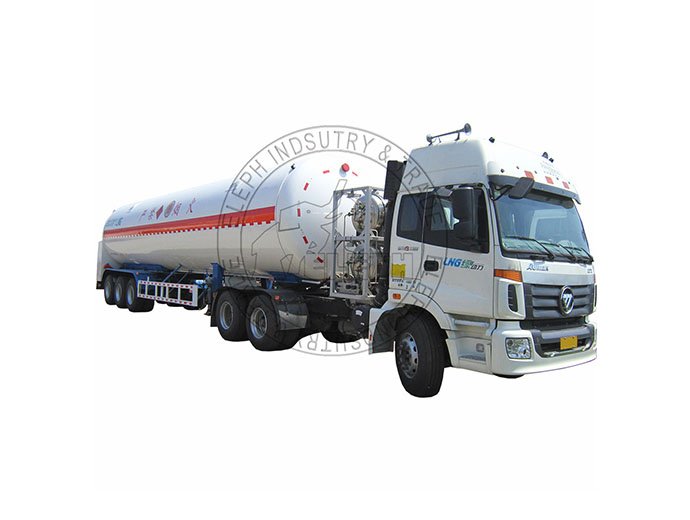

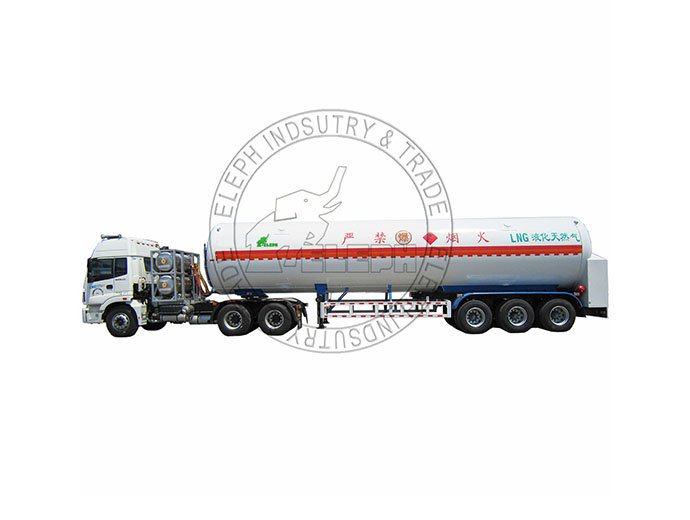

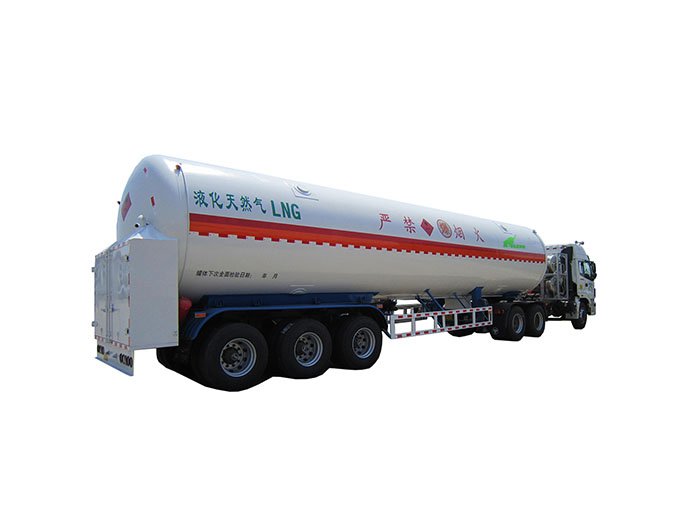

3 Axles 52.6cbm LNG Tanker Semi Trailer
Curb weight		19477 (Kg)
Total Weight		40000 (Kg)
capacity		52600 L
Design temperature		-196(°C)
Applicable shipping medium		Liquefied natural gas(LNG)
Inside tank material		06Cr19Ni10
Adiabatic way		Vacuum \ muti-layer adiabatic
Payload (Kg)		20553
Dimensions		13000x2500x3950 mm
Unit volume filling weight		0.39(KG/L)
Design pressure		0.68mpa
Working pressure		0.7mpa
Tank shell material		16MnR/Q345R
Adiabatic materials		Aluminum foil, adiabatic paper
(Relief valve)opening pressure(Mpa)		0.61
Axles		3 set(Fuwa 13T)
King pin		1 set 50#
Steel mechanical suspension system		1 set*3axles
24V circuit system		1 set, European Style
Loading and unloading valve		1 set
Content gauge (level gauge)		1 set
Thermal meter		1 set
Manometer		1 set
Cabinet		1 unit
Tire (12.00TriangleVacuum)		12* 12R22.5
Spare tire carrier		1 set
Pneumatic brake system		1 set
ABS		1 set
Hand tool		1 set
loading and unloading hose		1 set
Relief valve		2 set
Fire extinguisher		2 unit
Anti-static drag ground		1 unit
toolbox		1 unit with spare tools
Remarks	The vehicle is used to transport liquefied natural gas (LNG) specially . It has been applied in liquefied petroleum gas transportation already for 20 years. It has reasonable design, proven technology, safe and reliable. The design, manufacturing and inspection of our products are in accordance with the national standards:GB150, GB1589, it is equal to international standards. We can design different size tanks for users to correspond with local vehicles loaded weight standard.
