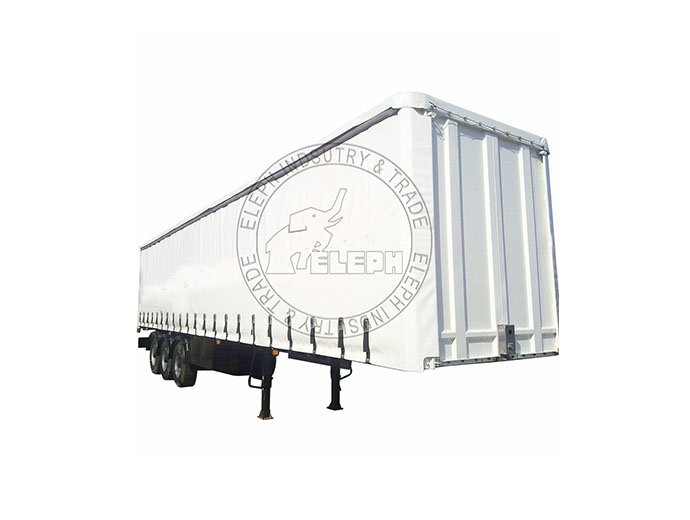

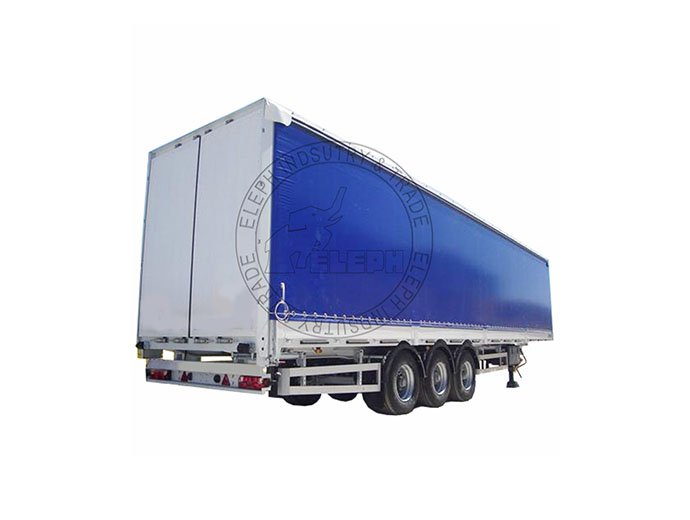

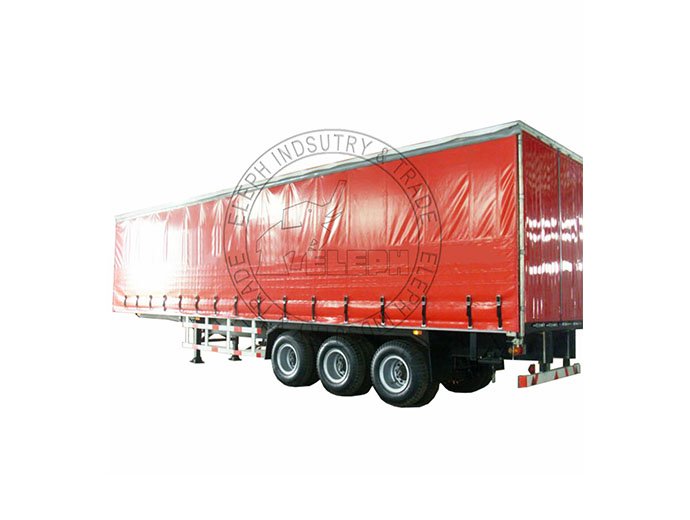

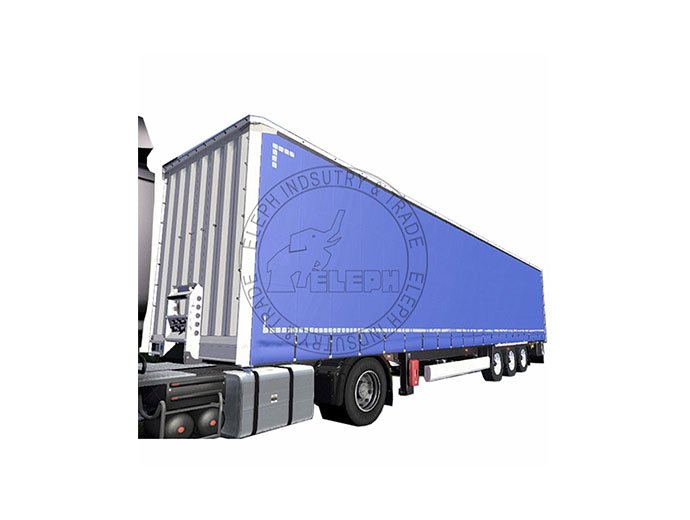

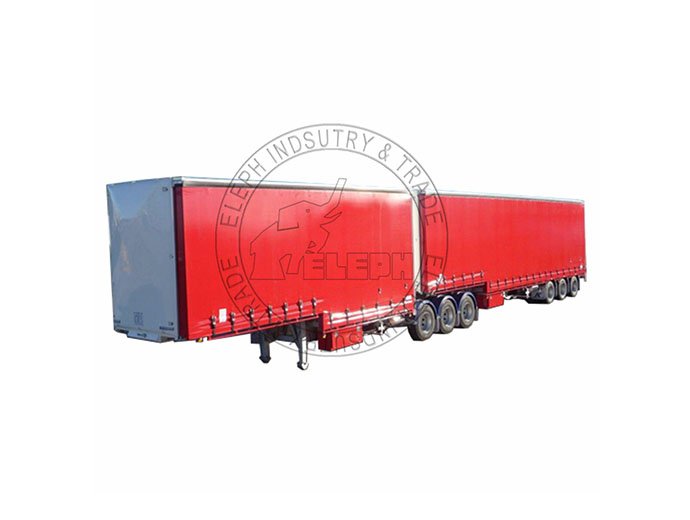

Side Pulling Curtain Semi Trailer

BACK

Cargo Transport Box Body Truck Semi Trailer
Model	ALP9350HWTST
Dimension(Optional)	Axle No.	Rated Load (kg)	Tire No.		Tire Size
20ft	2	40000	8		825R20 1000R20 1100R20 1200R20 12R22.5 (Other Size / Single Super Tire Contact with Supplier)
40ft 45ft 48ft 53ft	3	60000	12
40ft 45ft 48ft 53ft	4	75000	16
Manufacture	Qingdao Eleph Industry & Trade Co., Ltd
Wheel Base (mm)	1310
leaf-spring Pcs	10
Axle	13/16/18 T
Suspension	Heavy Duty Mechanic Suspension with Leaf Springs
Main Beam Material	Q345B manganese plates, automatic submerged arc welded
Brake System	Dual line braking system with automatic braking system/chambers
Brake Air Chamber	Double Model
Kingpin	2' or 3.5' Interchangeable
Landing gear	28T loading capacity with 80T static lifting capacity.
Platform	4-6 mm diamond steel plate
Brake System	Dual Lines Braking System With Automatic Air Chambers
Brake Air Chamber	Four double and two single chamber
Electrical System	24V, 7core socket, lights according to European standards.
Mainbeam Size	Upper plate			14mm
	Lower plate			16mm
	Mid Web			8 mm
	Height			500-520mm
Tool Box	1 box of standard tools
Spare tire carrier	2 sets
Color and Logo	Depends on the buyer’s requirement.
Pin Height	According to the height of the tractor saddle.
Painting	Three coats painting; Any color will be available
Application	For animal/livestock/coal/grain bulk cargo transport
Box Height	2M
