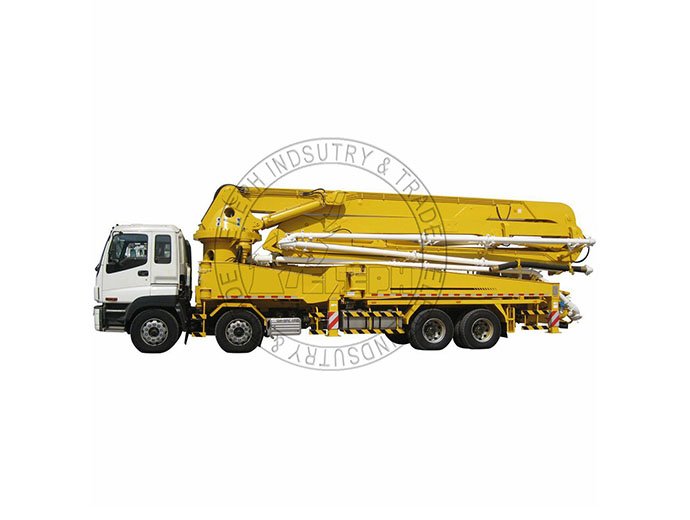

Concrete Pump

BACK

Detail

ITEM		HJC5390THB 48M
Weight		39000kg
Max. speed		89km/h
Dimensions	Length	12807mm
	Width	2490mm
	Height	3970mm
Engine	Type	Straight 6-cylinder, water-cooled, turbo-charged intercooled and direct-injection diesel engine
	Model	Isuzu 6WF1D
	Displacement	14256 mL
	Power	287kW/1800rpm
	Emission standard	Euro III
Pumping system	Delivery cylinder bore	230mm
	Distribution valve	“S” valve
	Theoretical concrete displacement	Low pressure 120m3/h
	Theoretical pumping pressure	Low pressure 6.5 MPa
	Hopper capacity	0.6m3
	Feeding height	1.55m
	Slump scope	140–230mm
	Maximum aggregate size	40mm
	System pressure	32 MPa
	Pressure cut-off	Automatic (optional)
Transmission	Model	MJT7S
	Operation mode	Manual
	Forward gears	6
	Pumping gear	5
Water pump	Drive method	Hydraulic drive
Water pump	Cleaning output	20 L/min
Chassis model		Isuzu CYH51Y
Chassis drive mode		8×4
All cabs equipped with A/C, sleeper
Wheelbase	1–2 shaft	1850 mm
	2–3 shaft	4605 mm
	3–4 shaft	1310 mm
Tread	1 shaft	2065 mm
Tread	2 shaft	1850 mm
Tire model		295/80R22.5
Minimum turning radius		11.9m
Braking distance		≤9.5m/30km/h
Boom	Boom folding style	“RZ”
	Quantities	5 sections
	Turning angle of boom	90° /180 ° /180° /180° /270°
	Rotation angle of turntable	365°
	Vertical reach	47.6m
	Reach depth	33.7m
	Horizontal reach	43.6m
	Delivery pipe size	125mm
	Hose length	3m
	Hydraulic system pressure	35MPa
Outrigger	Outrigger spread method	Rear swing
	Outrigger spread L-R front	10.44m
	Outrigger spread L-R rear	10.43m
	Hydraulic system pressure	25MPa
Power system	Transfer case	Germany STIEBEL
	Master pump	Germany Rexroth
	Boom/outrigger pump	Germany Rexroth
Control method		Manual/remote
Remote controller		Germany HBC
Water tank capacity		300L
Tank capacity		740L
Hydraulic oil cooling method		Air cooed
