Car Carrier Semi Trailers

BACK

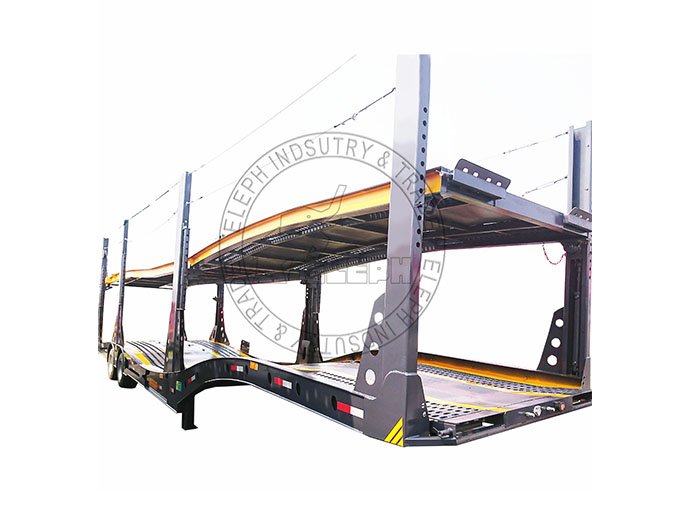

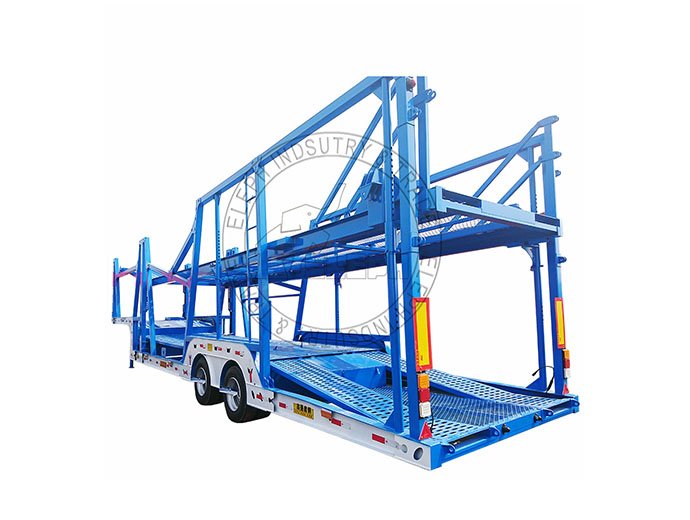

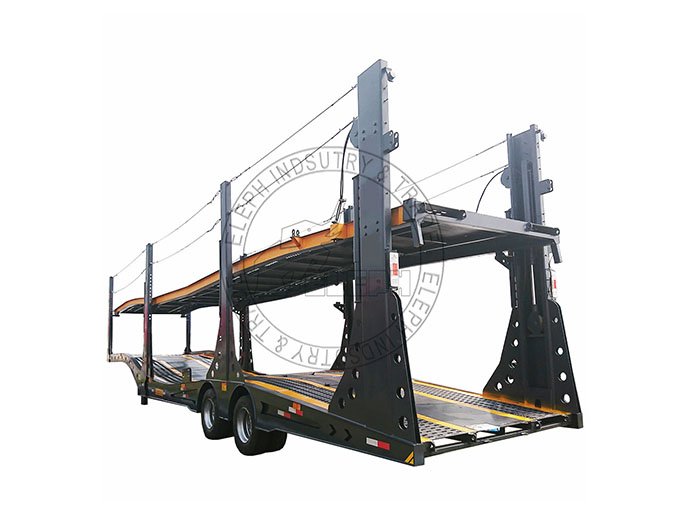

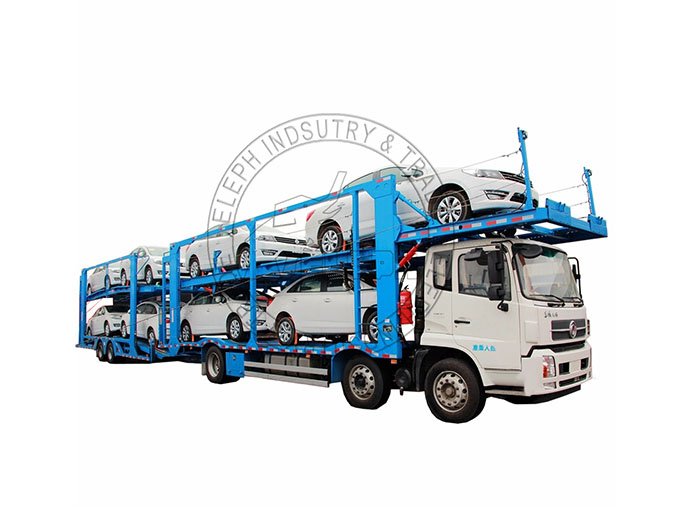

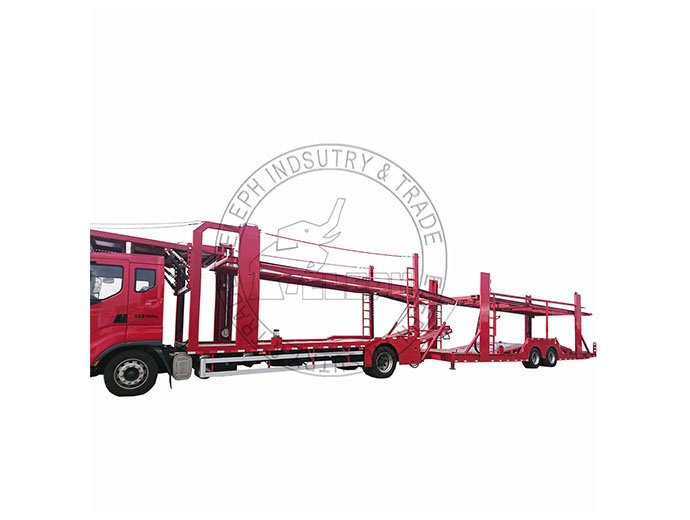

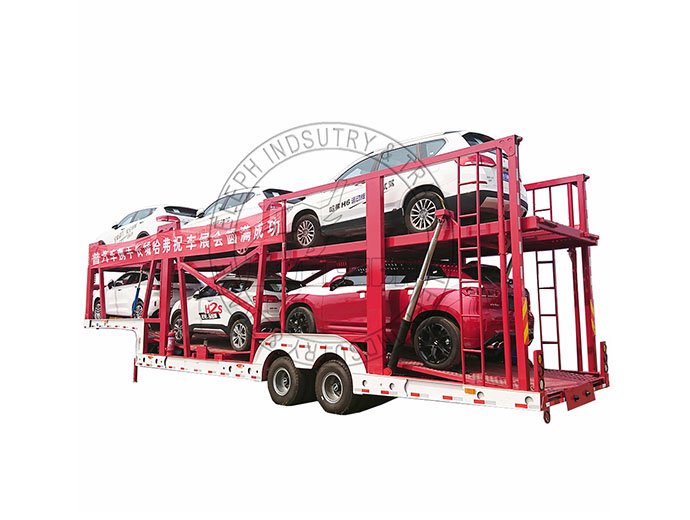

Cars Transportation Hydraulic Loading Truck Semi Trailer
Size	Axle No		Rating Capacity	Tire Qty	Tire Model
6 Cars Loading	2 Axles		30Tons	4/8 sets	825R20;10.00R20;11.00R20;12R22.5
10 Cars Loading	3 Axles		40-50Tons	6/12sets	825R20;10.00R20;11.00R20;12R22.5
More than 10 cars	4 Axles		60Tons	8/16sets	825R20;10.00R20;11.00R20;12R22.5
Rear tread(mm)		1840/1840
Outside Dimension L×W×H		14800-21000x2400x3000 mm
Main Frame		Q345B manganese plates, automatic submerged arc welded
Floor		Steel Sheet 3mm thickness or diamond plate
Suspension		Steel leaf spring suspension system
Rated load		30-50 T
Pin Size		2' and 3.5' inter-changeable Pin
Spare Wheel Carrier		One set of spare wheel carrier including a riser.
Braking System		2-Line compressed air brake system on all wheels with additional parking brake.
Brake Air Chamber		Automatic Air Chambers
Electrical System		1. Voltage: 24v 2. Receptacle: 7 ways(7 wire harness)
Accessory		One tooling box with a set of standard trailer tool
Landing gear		Capacity of 28ton,factory brand
Lights System		LED electrical system to international standards includes taillights, sidelights and direction indicators.
Loading Capacity		Two floors,
